- Size: 33
- Place of Origin: Fujian, China (Mainland)
- Brand Name: LIJIA
- Model Number: JG608C
- Weight: 5380.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: JINGGONG
Model Number: JG608C
Condition: New
Moving Type: Wheel Excavator
Bucket capacity: 0.2~0.3m3
Maximum Digging Height: 6000mm
Maximum Digging Depth: 3380mm
Machine Weight: 5380Kg
Max Digging Radius: 6000mm
Length*width*height(mm):5500*2100*2750
Engine Type: SL4100ABK
Rated Power: 43Kw/ 55Hp
Running Speed(Low/High): 9/36Km/h
Gradeability: 30 degree

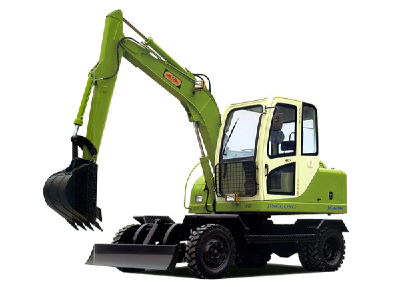

43KW/58HP Single Drive Wheel excavator
RANGE OF OPERATION | |
Boom length | 3030mm |
Arm length | 1860mm |
Max digging reach | 6000mm |
Max digging depth | 3380mm |
Max digging force | 45kn |
Max digging height | 5750mm |
Max dumping height | 3900mm |
Min platform tail turning radius | 1775mm |
DIMENSIONS | |
Wheel Base | 2600mm |
(Length*width*height)travel position | 5500*2100*2750mm |
Ground clearance of counterweight | 980mm |
Min ground clearance | 200mm |
TECH PERFORMANCE AND SPECIFICATION | |
Angle of rotation | 360° |
Machine weight | 5380kg |
Engine model | SL/4100ABK/498BPG |
Hydraulic system working pressure | 19.5Mpa |
Nominal capacity | 43kw/55hp/48kw |
Rate of travel speed | 9/36km/h |
Max hauling force | 50KN |
Walking speed | 36km/h |
Grade Climbing ability | 58%/30° |
Full circle swinging time | 5.5s |
Volume of bucket | 0.2-0.3m3 |
Revolution overdrive pressure | 11Mpa |
Fqt fuel quantity | 4≥L/H |
Capacity of the fuel tank | 130L |
Capacity of the hydraulic tank | 110L |
- Size: 33
- Place of Origin: Fujian, China (Mainland)
- Brand Name: LIJIA
- Model Number: JG608C
- Weight: 5380.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
43KW/58HP Single Drive Wheel excavator
RANGE OF OPERATION | |
Boom length | 3030mm |
Arm length | 1860mm |
Max digging reach | 6000mm |
Max digging depth | 3380mm |
Max digging force | 45kn |
Max digging height | 5750mm |
Max dumping height | 3900mm |
Min platform tail turning radius | 1775mm |
DIMENSIONS | |
Wheel Base | 2600mm |
(Length*width*height)travel position | 5500*2100*2750mm |
Ground clearance of counterweight | 980mm |
Min ground clearance | 200mm |
TECH PERFORMANCE AND SPECIFICATION | |
Angle of rotation | 360° |
Machine weight | 5380kg |
Engine model | SL/4100ABK/498BPG |
Hydraulic system working pressure | 19.5Mpa |
Nominal capacity | 43kw/55hp/48kw |
Rate of travel speed | 9/36km/h |
Max hauling force | 50KN |
Walking speed | 36km/h |
Grade Climbing ability | 58%/30° |
Full circle swinging time | 5.5s |
Volume of bucket | 0.2-0.3m3 |
Revolution overdrive pressure | 11Mpa |
Fqt fuel quantity | 4≥L/H |
Capacity of the fuel tank | 130L |
Capacity of the hydraulic tank | 110L |
